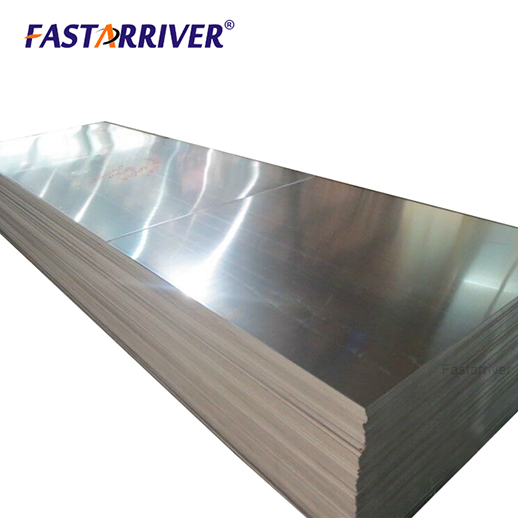

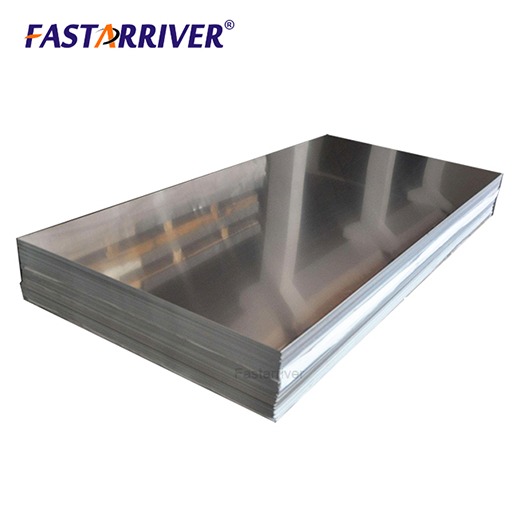

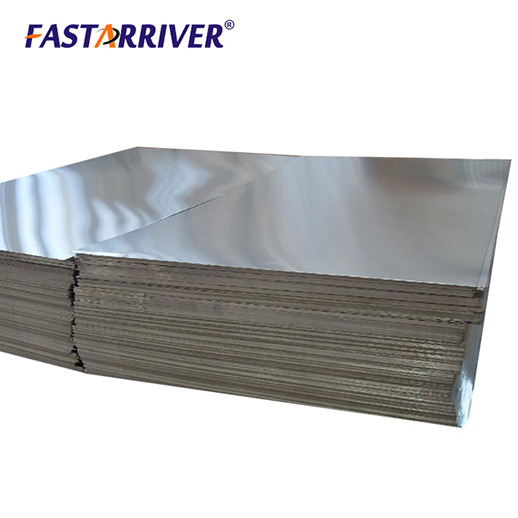

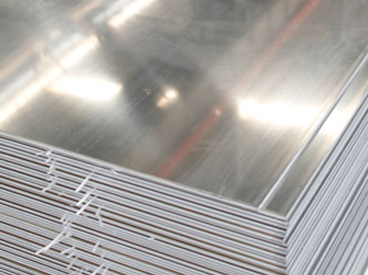

1050 aluminum sheet belongs to commercially pure wrought family with a purity of 99.5% Al. It also belongs to 1000 series aluminum alloy, which has better correction resistance than other alloy series. In the 1050 aluminum sheet, in addition to the component Al, 0.4% Fe is added, so 1050 aluminum alloy also has high conductivity. In general, 1050 aluminum sheet properties exhibit high plasticity, strong corrosion resistance, excellent electrical and thermal conductivity, but the strength of 1050 aluminum alloy is low. In addition, different temper can be provided, such as O (annealed), H12, H14, H18 and so on.
FASTARRIVER Industrial company supplies the most extensive aluminum sheets and coils. For further information about any of our products, please feel free to contact me. And if you do not know the professional details, just tell me its size and use, I will offer a fully solution for you !
timli@fastarriver.com
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others> | Al |
| Content | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.07 | 0.05 | 0.15 | Remain |
| Alloy Temper |
Specified | Tensile strength |
Yield strength |
Elongation | ||||||
| Thickness(mm) | (MPa) | (MPa) | (%) | |||||||
| 1050-O | 0.2-0.5 | 65-95 | Min20 | Min20 | ||||||
| 0.5-1.5 | Min22 | |||||||||
| 1.5-3.0 | Min26 | |||||||||
| 3.0-6.0 | Min29 | |||||||||
| 6.0-12.5 | Min35 | |||||||||
| 1050-H12 | 0.2-0.5 | 85-125 | Min65 | Min2 | ||||||
| 0.5-1.5 | Min4 | |||||||||
| 1.5-3.0 | Min5 | |||||||||
| 3.0-6.0 | Min7 | |||||||||
| 6.0-12.5 | Min9 | |||||||||
| 12.5-40.0 | ||||||||||
| 1050-H14 | 0.2-1.5 | >105-145 | Min85 | Min2 | ||||||
| 1.5-3.0 | Min4 | |||||||||
| 3.0-6.0 | Min5 | |||||||||
| 6.0-12.5 | Min6 | |||||||||
| 12.5-25 | ||||||||||
| 1050-H16 | 0.2-0.5 | 120-160 | Min100 | Min1 | ||||||
| 0.5-1.5 | Min2 | |||||||||
| 1.5-4.0 | Min3 | |||||||||
| 1050-H18 | 0.2-0.5 | Min135 | Min120 | Min1 | ||||||
| 0.5-1.5 | Min140 | Min2 | ||||||||
| 1.5-3.0 | Min2 | |||||||||
1050 aluminum sheet is commonly used in some places that require high corrosion resistance and formability but not high strength. 1050 aluminum sheet is also industrial aluminum. For example, A typical application is the manufacture of chemical industry containers. In addition,1050 aluminum alloy is used for lithium battery soft connection, pole material, explosion-proof valve, PS board base, heat sink, signage, lamp, reflector, etc.
1.1050 aluminum sheet , which belongs to pure aluminum series, has high ductility and reflectivity.
2.1050 aluminum sheet is a non-heat treatment alloy, which is enhanced by cold working, and has excellent cold workability, solderability and weldability.
3.Compared with metals with higher alloy content, 1050 aluminum sheet mechanical strength is lower, so 1050 aluminum alloy is well suitable for chemical and electrolytic brightening but not in casting.
4.The least important point is that the surface of 1050 aluminum sheet can be anodized. In addition, it has medium strength and excellent processing technology makes 1050 aluminum sheet have a wider range of applications.
 |
 |

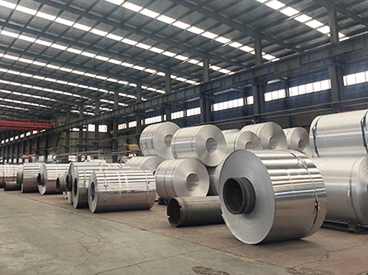

We have a complete production, processing and quality control system.

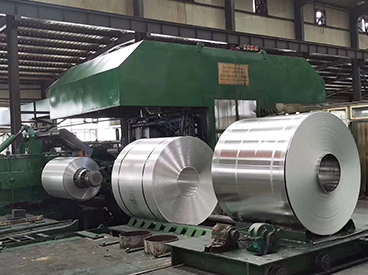

| 6 continuous casting-rolling production lines. | 4 sets cold rolling machines. |
| 4 sets foil rolling machines. | 2 sets continuous rotary coating machines. |
| 2 sets mirror surface polishing machines. | 2 sets laminating machines. |
| 3 sets embossing machines and other processing machines. | |
| Especially a (1+4) hot rolling production line with 30,000 tons annual output. | |
| In addition, we provide a complete suite of aluminum processing services, includes mill finish, colored, embossed, brushed, mirror polished, etc. The most important is we are focusing on and leading the insulation jacketing aluminum, with Polysurlyn or Polykraft Moisture Barrier. | |

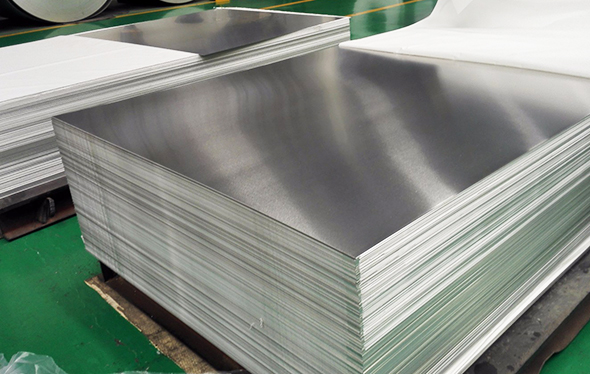

Standard seaworthy exporting packing with wooden carton and pallets.
1. Waterproof plastic and strong wrapping paper cover.
2. Metal belts baling and wooden pallets on the bottom. Also can pack as your request. And clear dimensions are calculated by your inquiry.
Shipping from Shanghai or Qingdao port usually, other main ports in China is available too.

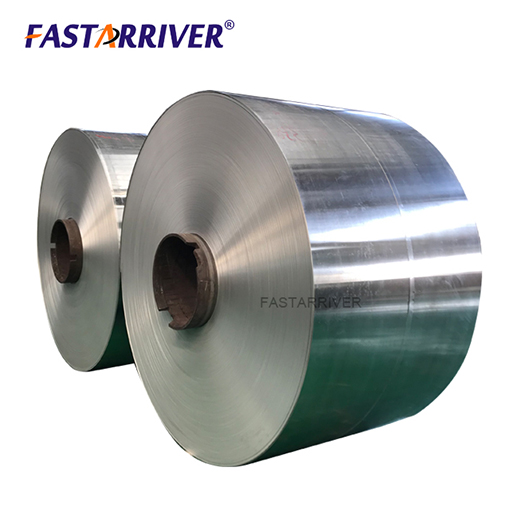

300mm, 400mm, 500mm inner diameters for your easy usage.
Chemical analysis laboratory, oil analysis laboratory, spectral analysis laboratory, tensile laboratory, micro analysis laboratory.
Strict control of production materials, and strictly monitor the production process, meet customers' demands exactly.
